Sliding patio-door roller repair

The role of rollers

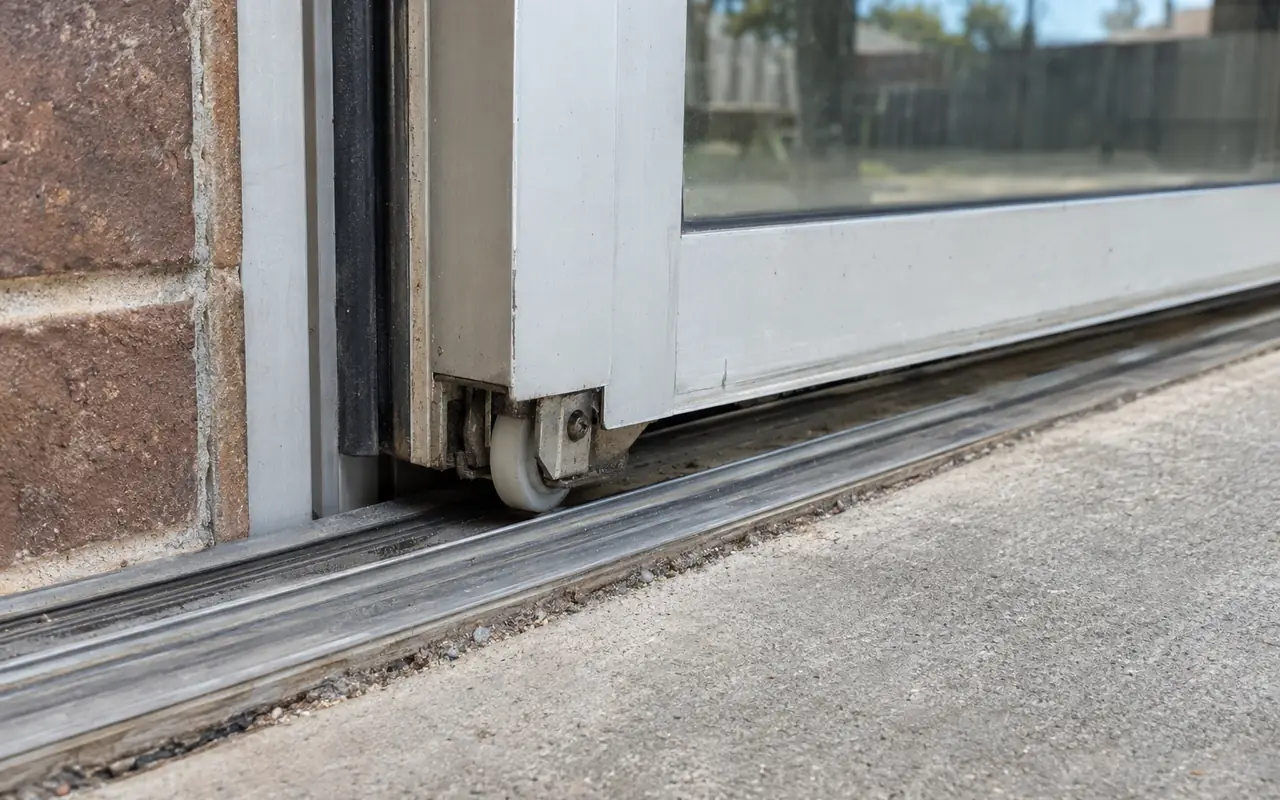

A sliding patio door has at least two side-by-side panels: at least one fixed and at least one that slides. The sliding panel rests on rollers set into its bottom rail, and the rollers ride on a raised track in the sill. Everything about how the door feels to move depends on those rollers and that track. When the rollers turn freely and sit at the right height, the panel glides with one hand. When they wear flat, seize, fill with grit, or drop out of adjustment, the door becomes heavy, noisy or crooked.

Symptoms that overlap with other causes

The door is hard to slide; it drags or grinds along the sill; it moves in jerks; it has become heavier over months; it sits lower at one end than the other; the latch no longer meets the keeper. Each of these can be rollers. Each can also be a dirty or damaged track, an obstruction in the track, a panel out of alignment, or a loose keeper. Manufacturer troubleshooting tables list those as separate causes with separate remedies, which is why the first job is diagnosis rather than parts. At JELD-WEN, at least, those causes do not depend on the frame: the vinyl, aluminum, and wood repair guide shows its vinyl and wood door guides giving the same causes and fixes for a panel that will not open. For a side-by-side view of each patio door fix this site covers, and what an owner can check before calling anyone, start with the repair overview. The track page and the alignment page cover the neighbors. If the door grinds as it moves, the grinding noise guide sorts out that symptom, and if the panel has come off its track, the off-track guide says to leave it where it is.

Parts identification

Rollers come as assemblies: a housing that fits into the panel's bottom rail, one or two wheels, an axle, and a height adjustment mechanism. Wheel material, diameter and profile vary by manufacturer and by era. Identification starts with the door itself: a label on the frame or panel edge, a stamp on the handle or lock, or the original paperwork, which is where at least one manufacturer directs owners. The maker label guide shows where three makers put a label, a glass etching, or an order number. If none of those exists, a close photograph of the wheel through the track gap and the panel's dimensions are the next best thing. See the photo guide. If the door turns out to be an Andersen 400 Series Frenchwood gliding door, the Andersen 400 Series Frenchwood gliding door guide covers which roller it uses and what Andersen says an owner can adjust with the panel in its frame. If it is a Pella, the Pella sliding patio door guide covers where Pella says to look for its Unit ID Number and the roller adjustment steps Pella's owner's manual gives, which differ by series. A balcony door in an apartment or condominium is almost always the same kind of door with the same rollers; what changes is who arranges the repair and the extra care an upper floor needs.

What a technician may inspect

A technician normally checks how the panel moves along its whole travel, listens for grinding, looks at the track for wear, dents and debris, checks the panel's height at both ends, and locates the roller adjustment screws. On many doors those screws sit at each lower end of the sliding panel, sometimes behind small plugs on the face or the end of the panel. Turning them raises or lowers the panel on its rollers. Manufacturer guidance warns that adjusting too high can allow water and air leakage, and adjusting too low makes the panel drag on the track; the panel should sit just high enough to clear the track with the weatherstrip still hidden when closed. One further caution from the same guidance: the direction of adjustment is not universal. On some doors clockwise raises the panel; on others it lowers it. A technician checks rather than assumes.

Repair limitations

• Adjustment corrects height and alignment. It does not restore a wheel that has flattened, cracked or seized.
• Replacing the roller assembly means removing the sliding panel. Manufacturers state that panels are very heavy, that removal requires two or more people, and that operating-panel removal is for professionals. This site does not describe how to lift or remove a panel and advises against attempting it.
• New rollers do not fix a bent or worn track. If the track is damaged, roller replacement alone can wear the new wheels quickly.
• Some doors have no available replacement assembly. The repair-or-replace guide covers that case, and if the answer is a new door, the Dallas sliding door replacement guide covers when the City of Dallas requires a permit and what the glass has to be.
• No fixed service price or universal parts availability is stated on this site.

Photo checklist

Take, without removing or lifting anything: the whole door from inside; any visible label or stamp; the sill track from above along its length; the bottom corner of the sliding panel where it meets the track; and the handle and latch. Note the approximate age of the door if you know it. Do not photograph keys or lock codes, and do not include more of the interior than the door. The photo guide has the full list.

Inquiry

Describe the symptom, the city, and what you photographed on the contact page. Choose "not sure" if you cannot tell rollers from track. The operator reviews every inquiry and responds with the next step; sending the form is not a booking.
